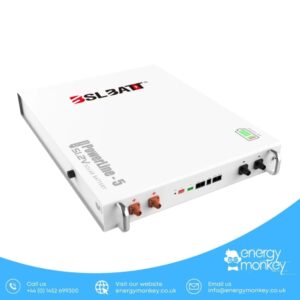

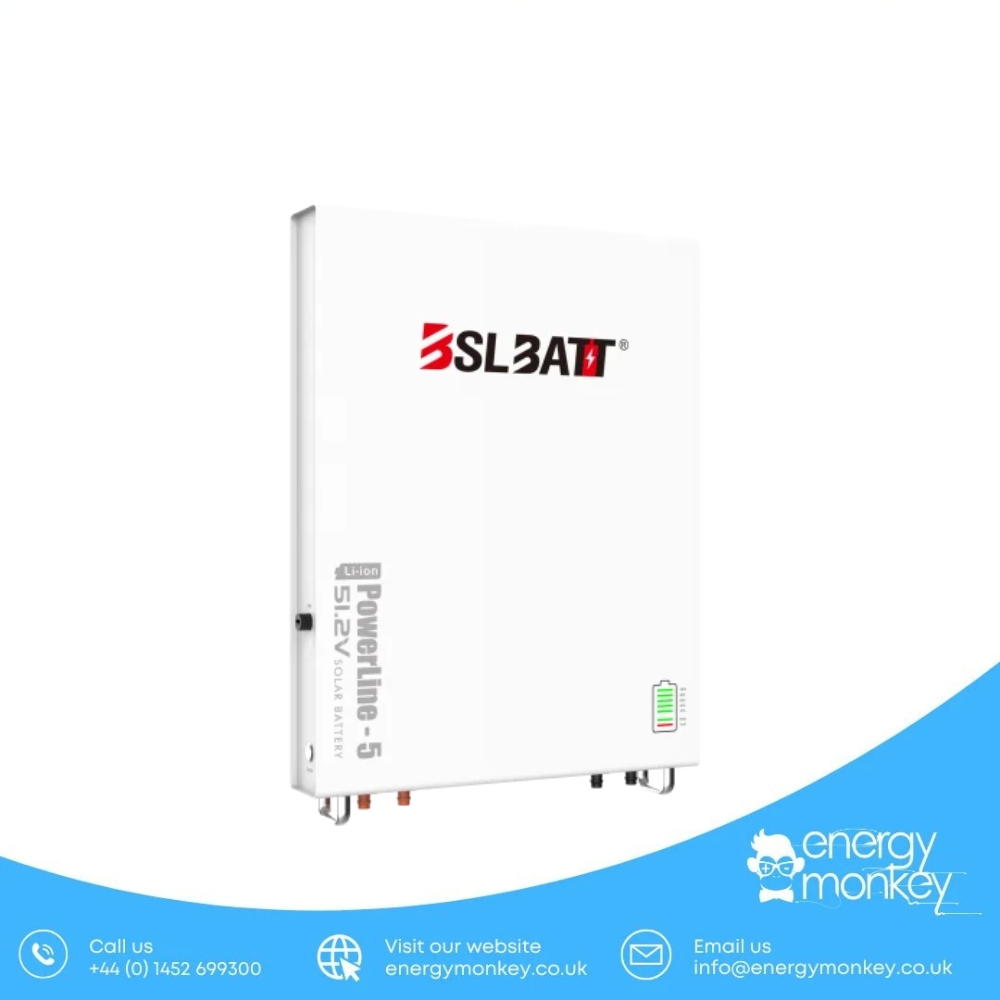

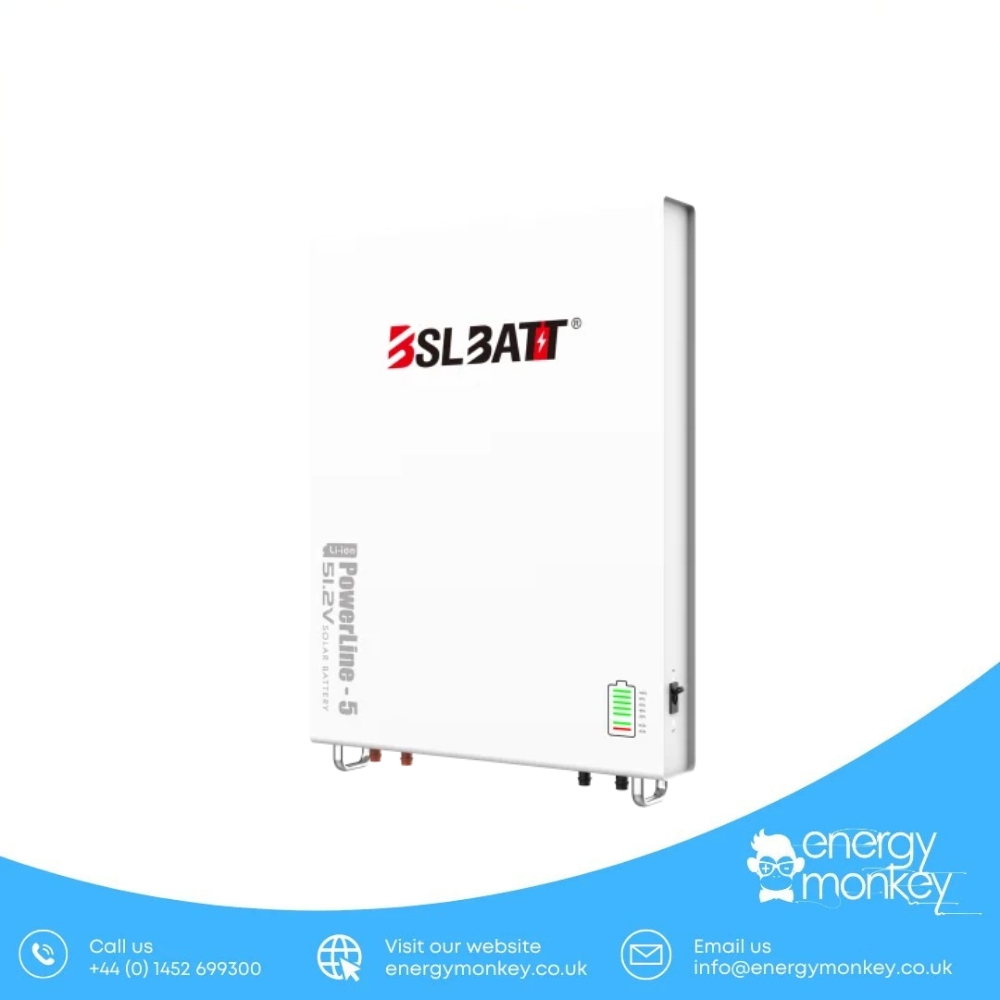

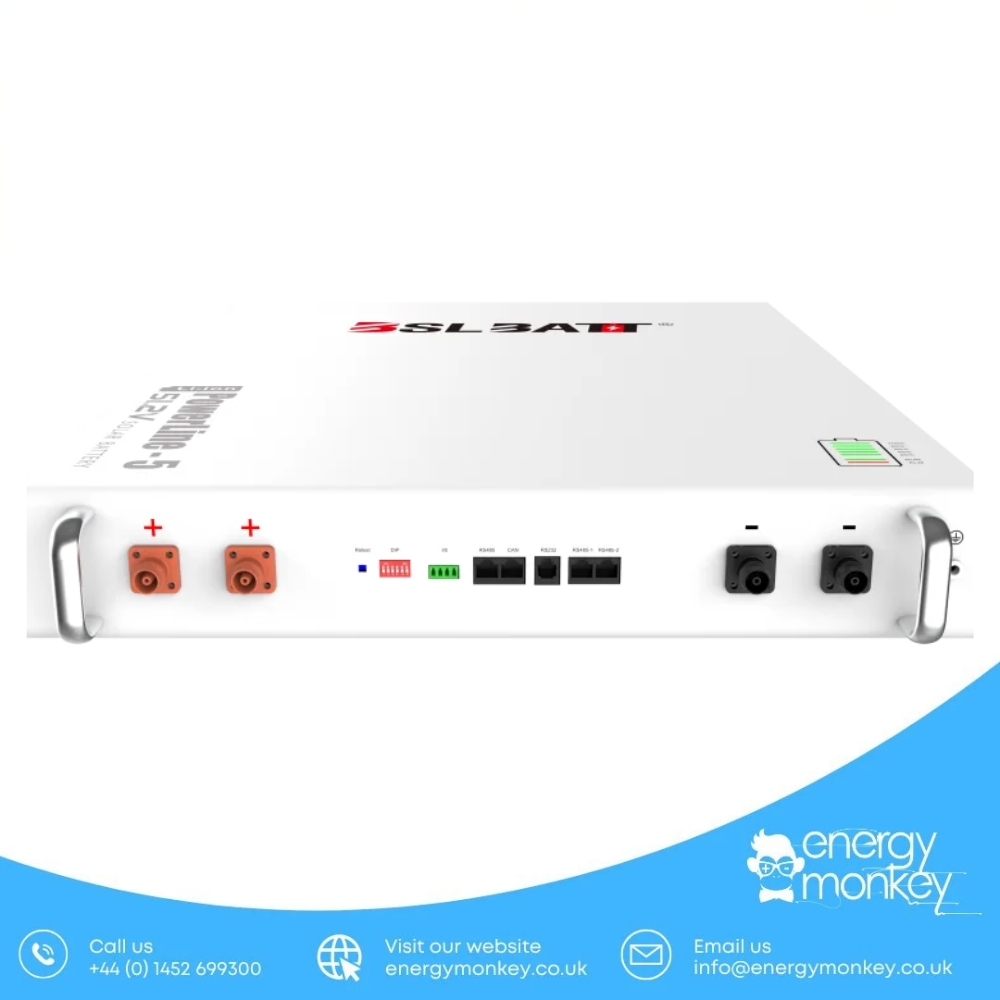

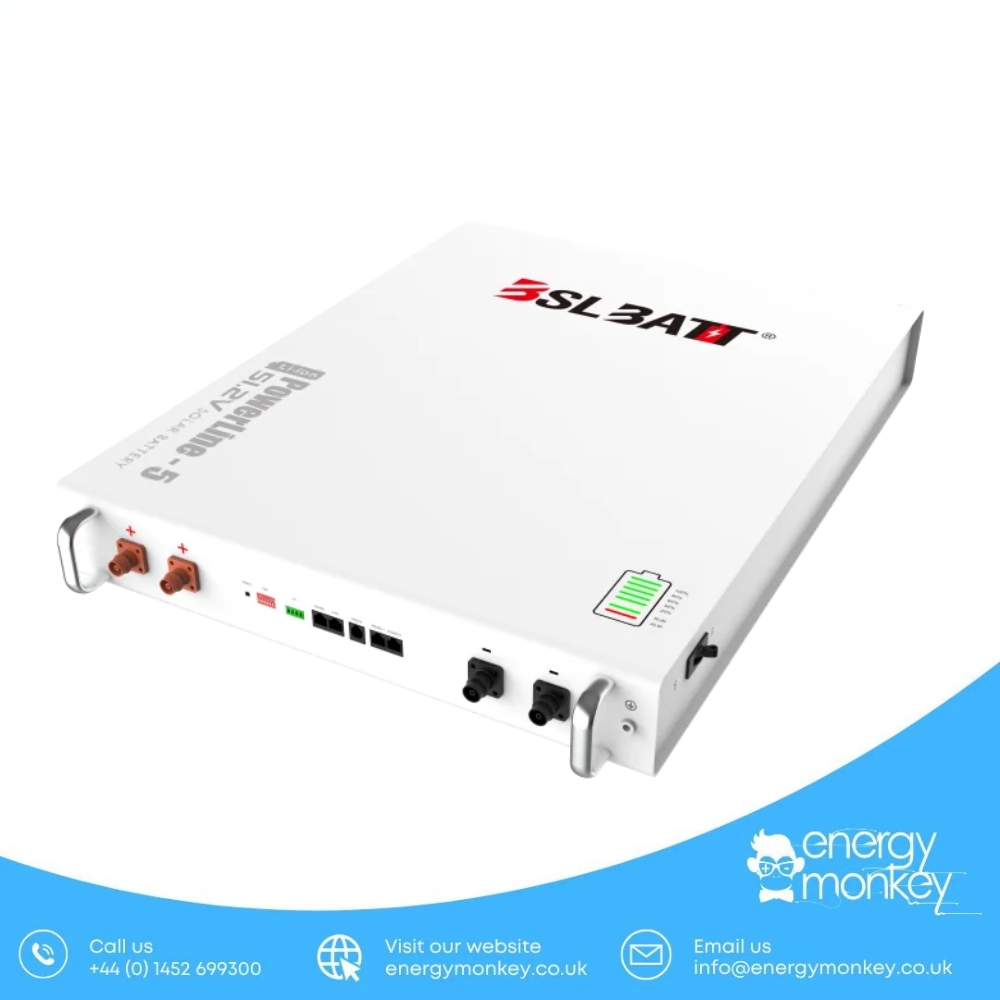

Powerline-5 Wall-Mounted Battery – 51.2V 5.12kWh
The Powerline-5 Wall-Mounted Battery is an ultra-slim 51.2V LiFePO₄ solar energy storage solution designed for modern homes that prioritize both aesthetics and performance. With a 5.12kWh capacity, it is ideal for residential energy storage and small-scale solar systems, providing reliable daily energy supply and backup power during outages. Its wall-mounted design integrates seamlessly into living spaces, delivering efficient, safe, and high-performance energy storage without compromising home aesthetics.
Sustainable Living, Powered by BSLBATT
Live Sustainably with the B-LFP48-100E 3U
Designed for residential solar systems and small-scale energy storage, the
Powerline-5 Wall-Mounted Battery (51.2V 5.12kWh) delivers compact,
reliable power to support daily energy needs and backup requirements. Its ultra-slim
wall-mounted design allows easy installation in modern homes, providing efficient
energy use, improved solar self-consumption, and a stable, uninterrupted power supply
without compromising living space aesthetics.
-
Long Battery Life: Delivers over 6,000 cycles at 90% DOD with a
10-year design lifespan for reliable long-term energy storage. -

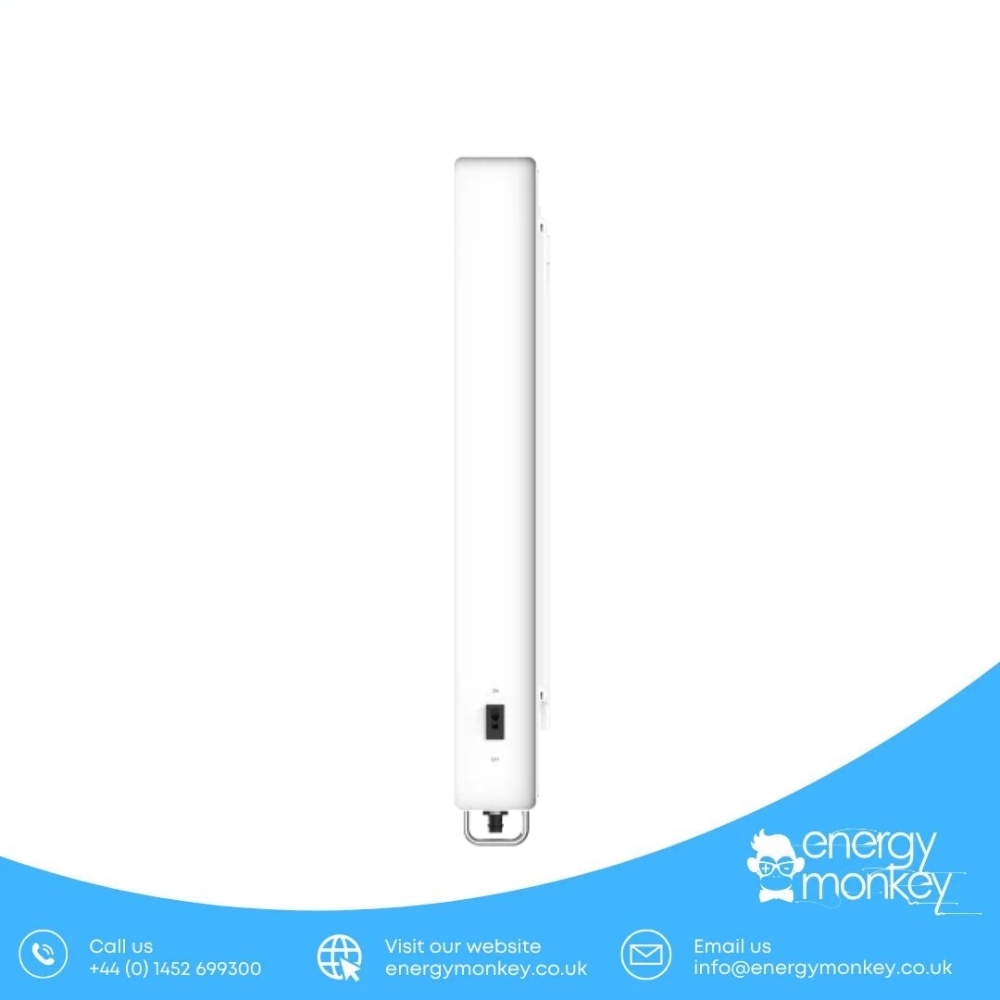

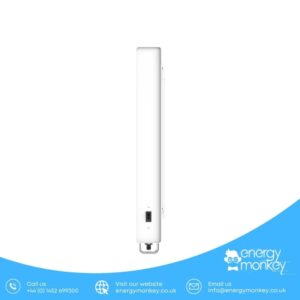

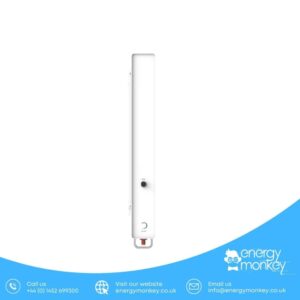

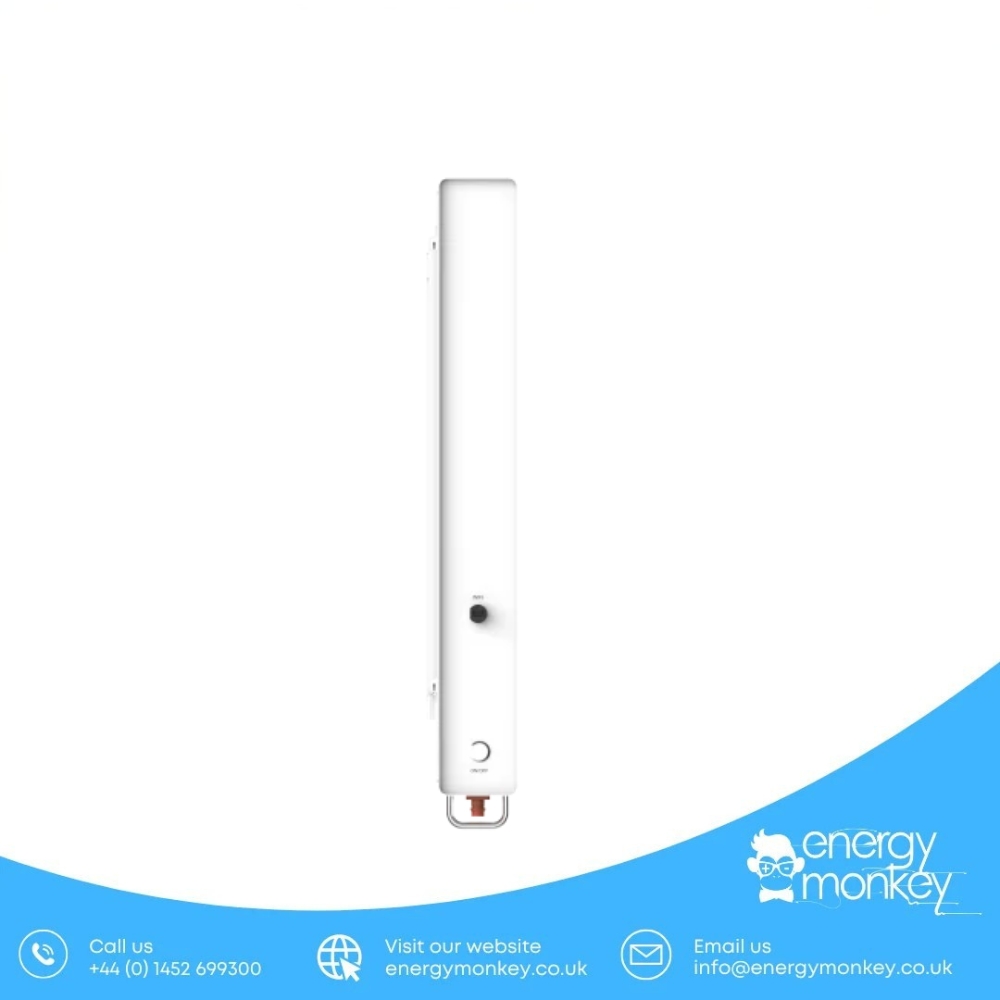

Ultra Thin Design: Only 90mm thick, allowing seamless wall mounting
without impacting home aesthetics. -
High Compatibility: Compatible with most 48V inverters, including
Victron and Studer, ensuring smooth integration with existing solar systems. -
BMS Protection: Intelligent Battery Management System provides
multi-level protection, enhancing safety and preventing potential system damage. -
UL Standard Battery Pack: Manufactured using automotive-grade
processes with a high-quality modular structure for enhanced stability and lifespan. -
10-Year Warranty: Backed by a 10-year warranty for guaranteed,
clean, and sustainable energy performance.
Specifications
See Inside the Performance
Explore the full performance of the Powerline-5 Wall-Mounted Battery – 51.2V
5.12kWh. Engineered for reliability, long service life, and efficient energy
storage, this LiFePO4 lithium battery delivers safe, high-performance power
for residential solar systems, small-scale energy storage, and backup power
applications, ensuring stable operation and a continuous, uninterrupted energy
supply while seamlessly blending into modern home interiors.
| Parameter | Details |
|---|---|
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 5.12 kWh |
| Cell & Configuration | 16S1P, Lithium Iron Phosphate (LiFePO₄) |
| Battery Type | Wall-Mounted Lithium Battery |
| Dimensions (L × W × H) | 700 × 540 × 90 mm ±1mm |
| Weight | 46 kg |
| Cycle Life | > 6,000 cycles @ 25℃ |
| Design Life | > 15 years (25℃ / 77℉) |
| Protection Level | IP20 |
| Expandable Units | Up to 32 units in parallel |
| Warranty | 10 Years |
| Certifications | UN38.3, UL1973, IEC62619, AU CEC, USCA CEC |
