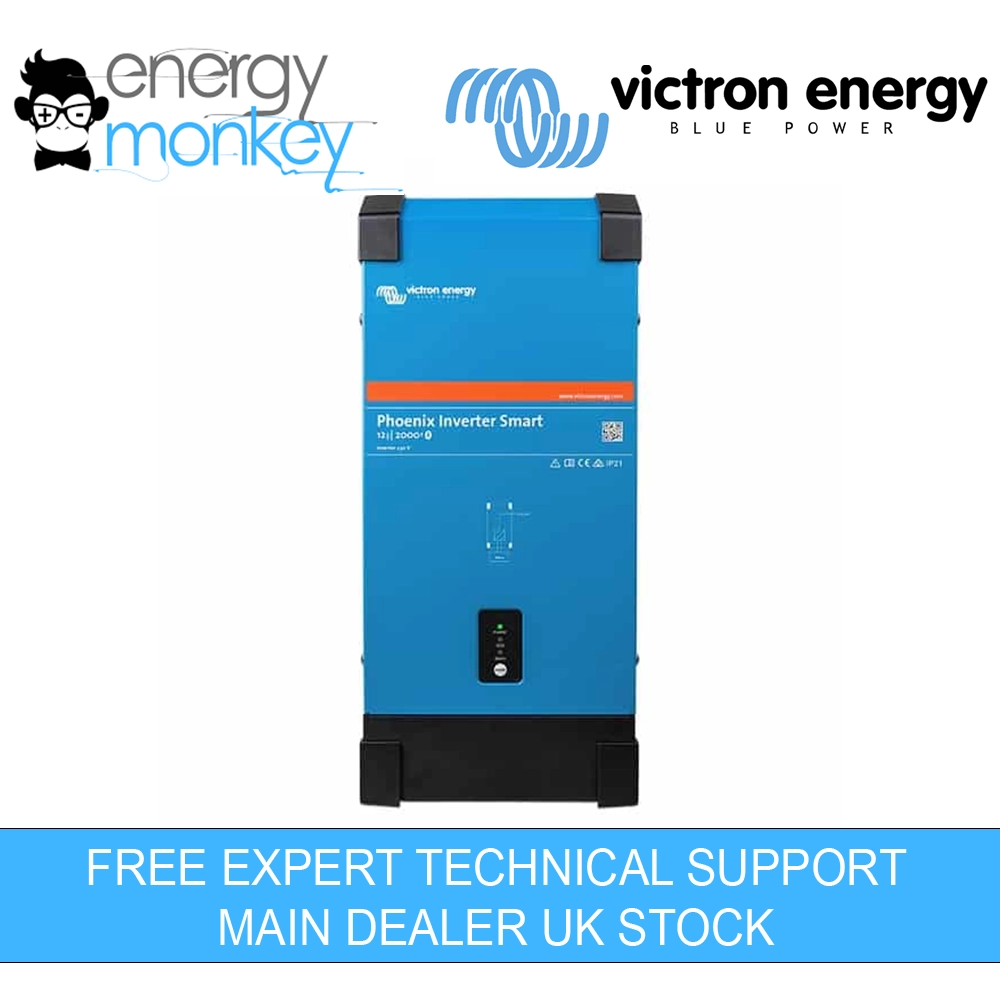

Victron Phoenix Inverter 24/2000 230V Smart (PIN242200000) -BLUETOOTH

Victron Phoenix Inverter 24/2000 230V Smart (PIN242200000)

Bluetooth built-in: fully configurable with a tablet or smartphone
– Low battery voltage alarm
– Low battery voltage cut-off and restart levels
– Dynamic cut-off: load dependent cut-off level
– Output voltage: 210 – 245V
– Frequency: 50 Hz or 60 Hz
– ECO mode on/off and ECO mode sense level
– Alarm relay Monitoring:
– In- and output voltage, load and alarms

VE.Direct communication port

The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.

Remote on/off

A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

LED diagnosis

Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch

For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
