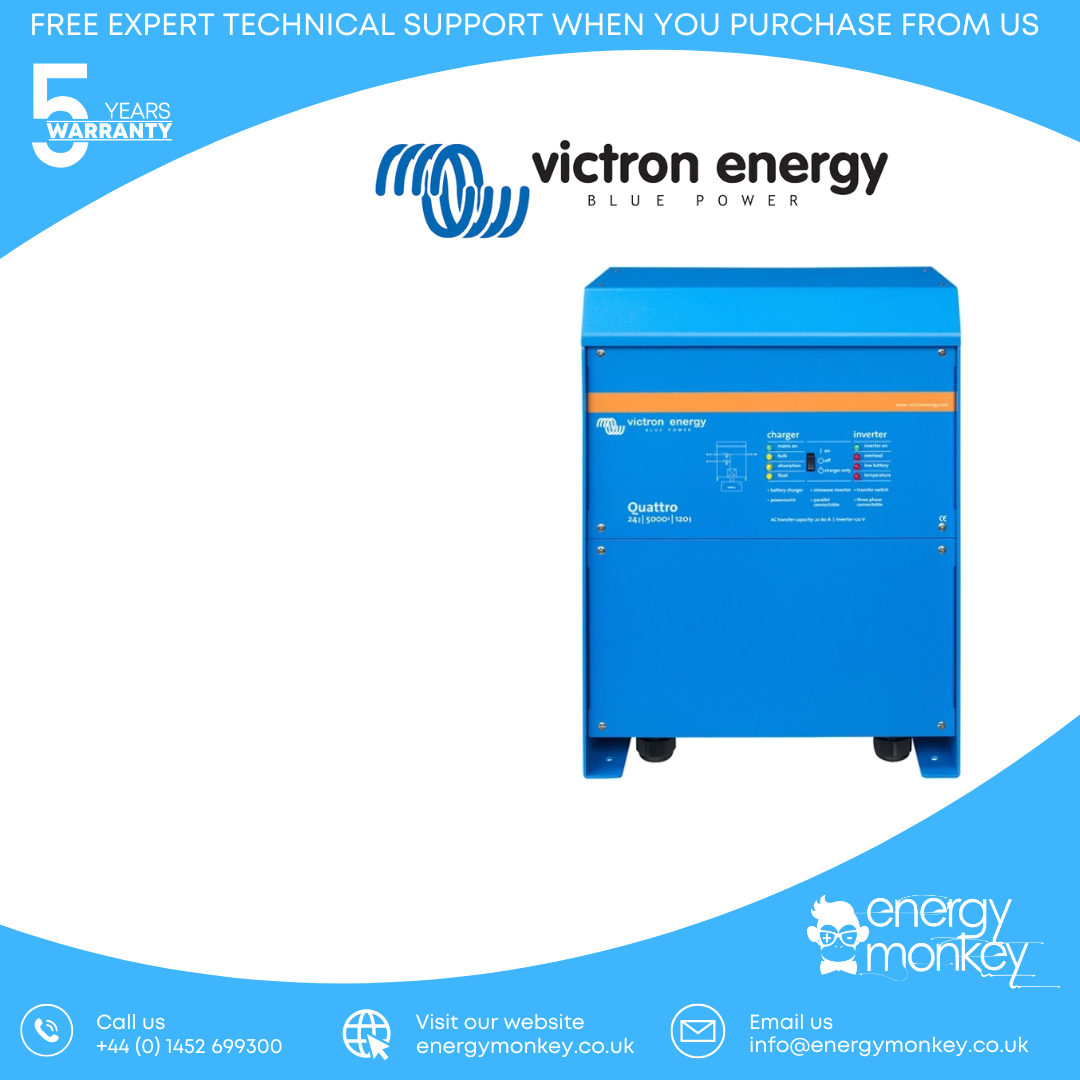

Name: Victron Quattro 24/5000/120-100/100 120V VE.Bus (QUA245023110)
SKU: QUA245023110
Price: 2748.90 GBP
Availability: OutOfStock

Victron Quattro 24/5000/120-100/100 120V VE.Bus (QUA245023110)

This Victron Product benefits from a 5 year warranty

Quattro

Multifunctional

Victron Quattro 24/5000/120-100/100 120V VE.Bus. Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Models:3000VA, 5000VA, 8000VA, 10000VA, 15000VA

Two AC Inputs & two AC Outputs

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a back up generator and more.

Weight	34 kg
Dimensions	444 × 328 × 240 mm
Brand	Victron Energy
Colour	Blue
Country of origin	India
Global Identifier (GTIN code)	8719076024187
Intrastat statistical code	85044084
Manufacturer	Victron Energy
Quantity per masterbox	1
Quantity per pallet	20
Size	444 x 328 x 240
SKU	QUA245023110
USA statistical code	8504.40.95.70
