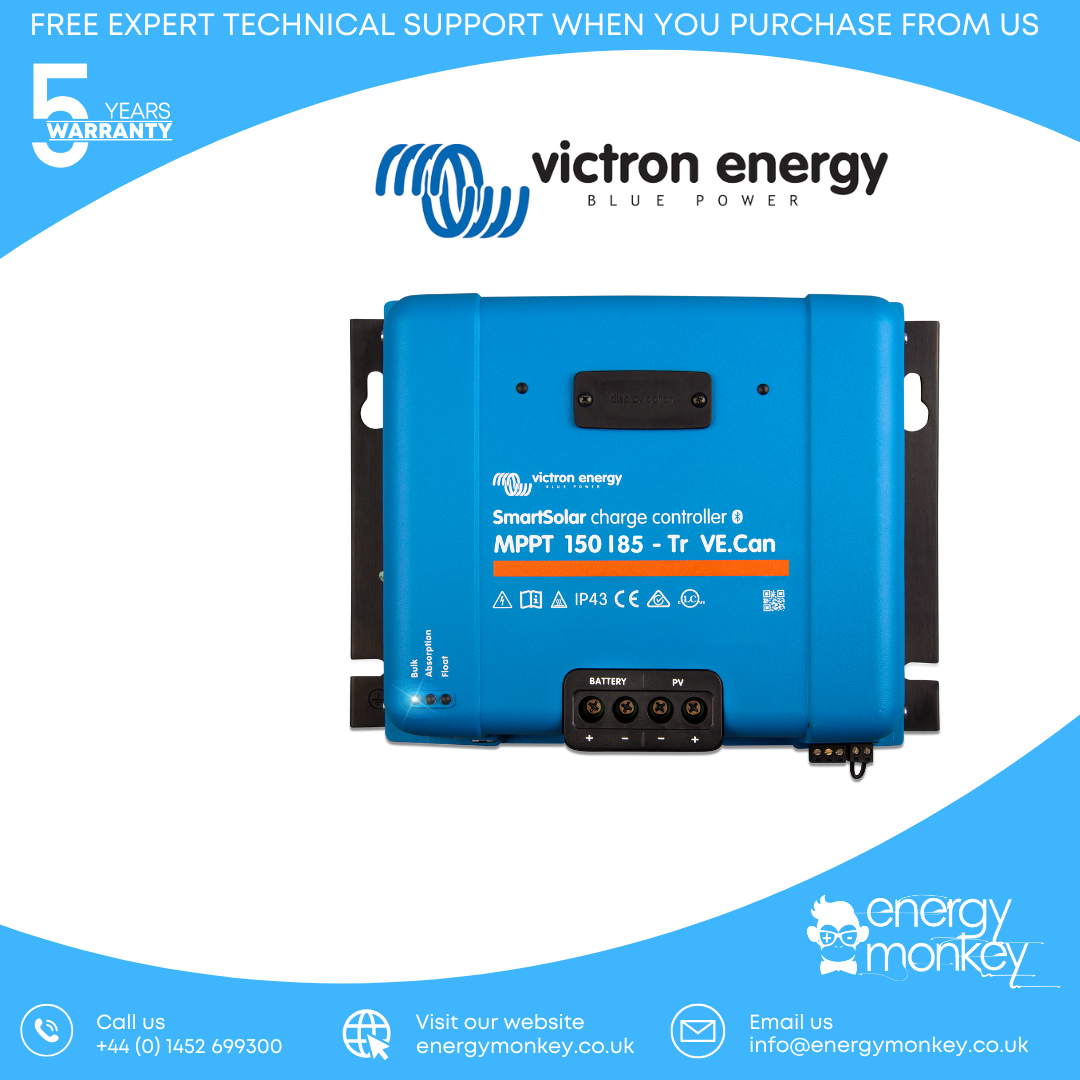

Victron SmartSolar MPPT 150/85-Tr VE.Can (SCC115085411)
Victron SmartSolar MPPT 150/85-Tr VE.Can – The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Models:12/24/36/48 Volt
MPPT: Ultra fast maximum power point tracking
The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.
The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others.
Control your charger remotely
The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Daisy chain additional units
The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
Remote monitoring and control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).
SmartSolar control display
The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.
Energy Monkey are approved distributors of Victron Energy
If you need help with your MPPT please get in touch. We are here to help.
Energy Monkey have worked in the battery and energy markets for around 10 years and are specialists in Victron Energy products. We are able to help you with any project for any application you need.
For more information or technical support before buying please call Energy Monkey Ltd on +44 (0) 1452 699300 or send us a message.
Part number: SCC115085410
| Weight | 5.05 kg |
|---|---|
| Dimensions | 216 × 295 × 103 mm |
| Brand | Victron Energy |
| Colour | Blue |
| Country of origin | India |
| Global Identifier (GTIN code) | 8719076050339 |
| Intrastat statistical code | 85044055 |
| Manufacturer | Victron Energy |
| Quantity per masterbox | 3 |
| Quantity per pallet | 72 |
| USA statistical code | 8504.40.95-90 |
| Size | 216 x 295 x 103 |
| SKU | SCC115085411 |
