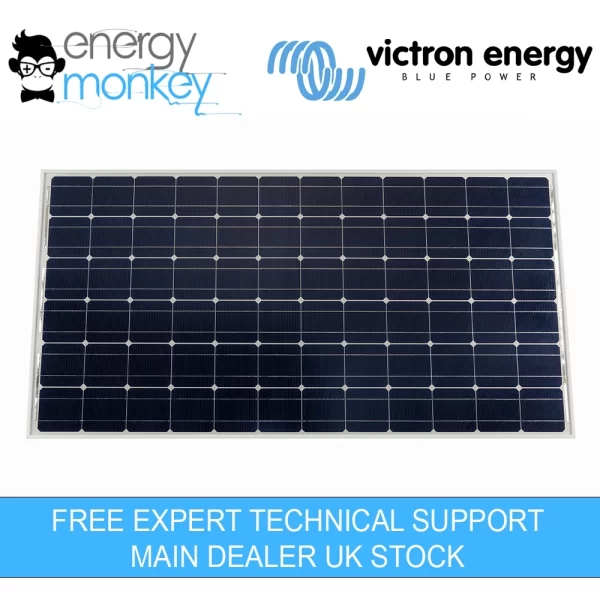

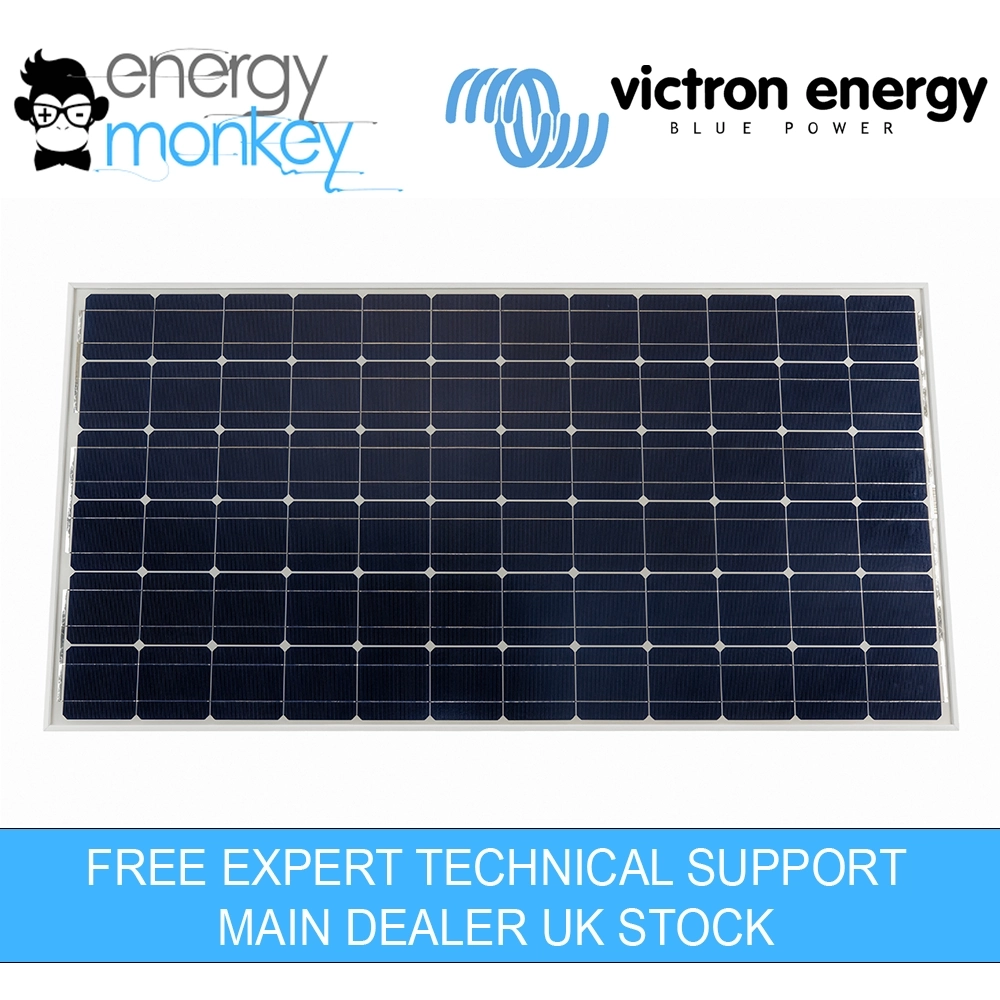

Victron Solar Panel 270W-20V Poly 1640 x 992 x 35mm series 4a (SPP042702000)
This Victron Product benefits from a 5 year warranty
– Low voltage-temperature coefficient enhances high-temperature operation.
– Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
– 25-Year limited warranty on power output and performance.
– 5-Year Limited warranty on materials and workmanship.
– Sealed, waterproof, multifunctional junction box gives high level of safety.
– High performance bypass diodes minimize the power drop caused by shade.
– Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
– A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
– Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
– Pre wired quick-connect system with PV-ST01 connectors.
| Nominal Power (±3% tolerance) | 270W |
| Cell type | Polycrystalline |
| Number of cells in series | 60 |
| Maximum system voltage | 1000V |
| Temperature coefficient of MPP (%) | -0.47/°C |
| Temperature coefficient of Voc (%) | -0.34/°C |
| Temperature coefficient of Isc (%) | +0.045/°C |
| Temperature Range | -40°C to +85°C |
| Surface Maximum Load Capacity | 200 kg/m² |
| Allowable Hail Load | 23 m/s, 7.53 g |
| Weight | 18.4 kg |
|---|---|
| Dimensions | 1640 × 992 × 35 mm |
| Colour | Black |
| Country of origin | China |
| Global Identifier (GTIN code) | 8719076040569 |
| Intrastat statistical code | 85414090 |
| Manufacturer | Victron Energy |
| Quantity per masterbox | 1 |
| Quantity per pallet | 42 |
| USA statistical code | 8541.40.60-20 |
| Size | 1640 x 992 x 35 |
| SKU | SPP042702000 |
