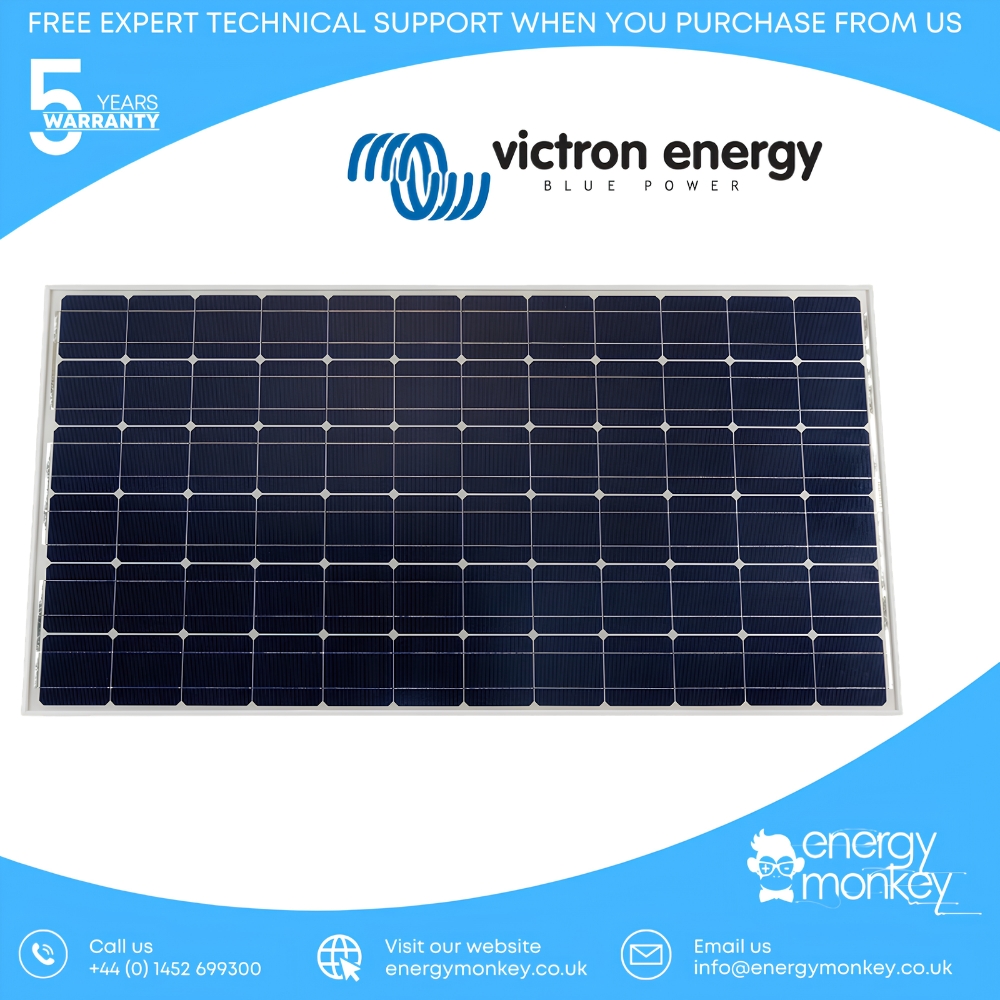

Victron Solar Panel 90W-12V Mono 780 x 668 × 30mm series 4a. (SPM040901200)
– Low voltage-temperature coefficient enhances high-temperature operation.
– Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
– 25-Year limited warranty on power output and performance.
– 5-Year Limited warranty on materials and workmanship.
– Sealed, waterproof, multifunctional junction box gives high level of safety.
– High performance bypass diodes minimize the power drop caused by shade.
– Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
– A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
– Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
– Pre wired quick-connect system with PV-ST01 connectors.
| Nominal Power (±3% tolerance) | 90W |
| Cell type | Monocrystalline |
| Number of cells in series | 36 |
| Maximum system voltage | 1000V |
| Temperature coefficient of MPP (%) | -0.45/°C |
| Temperature coefficient of Voc (%) | -0.35/°C |
| Temperature coefficient of Isc (%) | +0.04/°C |
| Temperature Range | -40°C to +85°C |
| Surface Maximum Load Capacity | 200 kg/m² |
| Allowable Hail Load | 23 m/s, 7.53 g |
| Weight | 7.1 kg |
|---|---|
| Dimensions | 780 × 668 × 30 mm |
| Country of origin | China |
| Global Identifier (GTIN code) | 8719076040347 |
| Intrastat statistical code | 85414090 |
| Manufacturer | Victron Energy |
| Quantity per masterbox | 2 |
| Quantity per pallet | 72 |
| USA statistical code | 8541.40.60-20 |
| Size | 780 x 668 x 30 |
| SKU | SPM040901200 |
