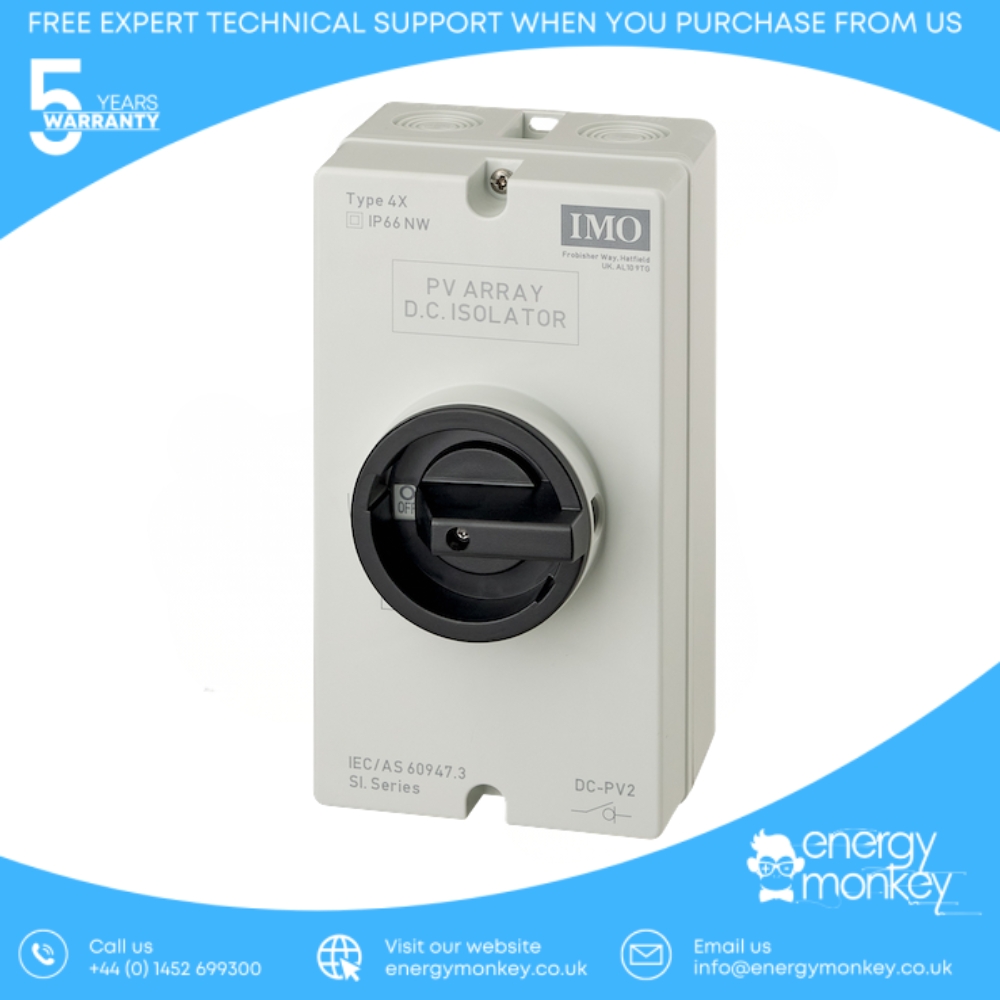

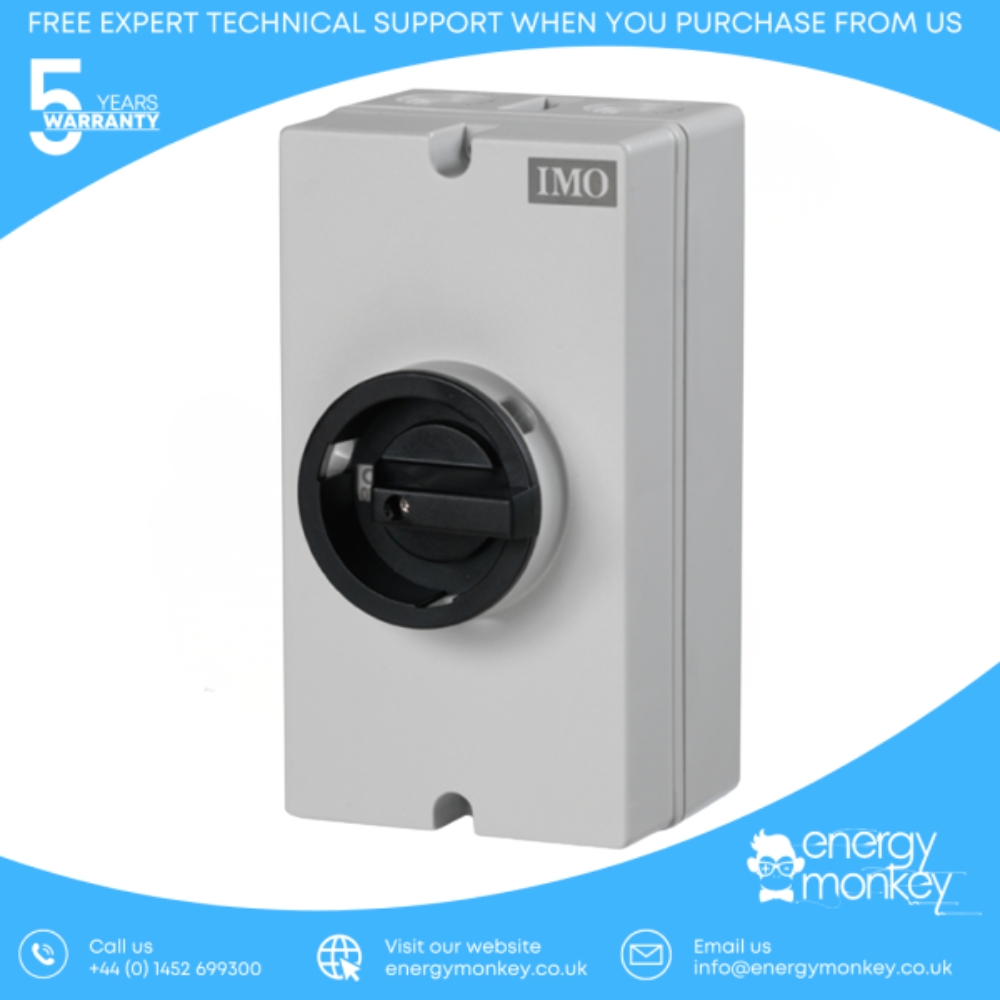

Enclosed DC Switch IP67 Nema 4X 4 Pole 2 String 25A 700VDC Lockable Rotary Handle (SI25-PEL64R-4)
Enclosed DC Switch SI25-PEL64R-4
4 Pole | 2 String | 25A | 700VDC | Lockable Rotary Handle
The SI25-PEL64R-4 is a high-quality enclosed DC switch designed for industrial and solar applications.
It features a robust IP67 and NEMA 4X rated enclosure for superior protection against dust, water, and harsh environmental conditions.
The lockable rotary handle ensures safe operation and prevents unauthorized access. With a 25A current rating and a 700VDC voltage rating,
this switch is ideal for controlling DC circuits in renewable energy, battery, and other industrial setups.
Key Features
- Enclosed DC switch with 4 poles and 2 strings
- Lockable rotary handle for enhanced safety
- Rated Current: 25A | Rated Voltage: 700VDC
- IP67 and NEMA 4X enclosure for dust and water resistance
- Operating temperature range: -40°C to +45°C
- Suitable for industrial and solar power applications
- Supports cable sizes: 4–16mm² (12–10 AWG)
Specifications
| Parameter | Specification |
|---|---|
| Handle Type | Lockable Rotary Handle |
| Lockable | Yes |
| Mounting | Enclosed |
| UL Current Rating (A) | 25.00 |
| Temperature Range (°C) | -40 to +45 |
| Number of Poles | 4P |
| IP Rating | IP67 |
| Cable Sizes (AWG) | 12–10 AWG |
| Rated Current (A) | 25A |
| Cable Size (mm²) | 4–16 mm² |
| Rated Voltage (VDC) | 700VDC |
Downloads
UL North America Selection Guide
