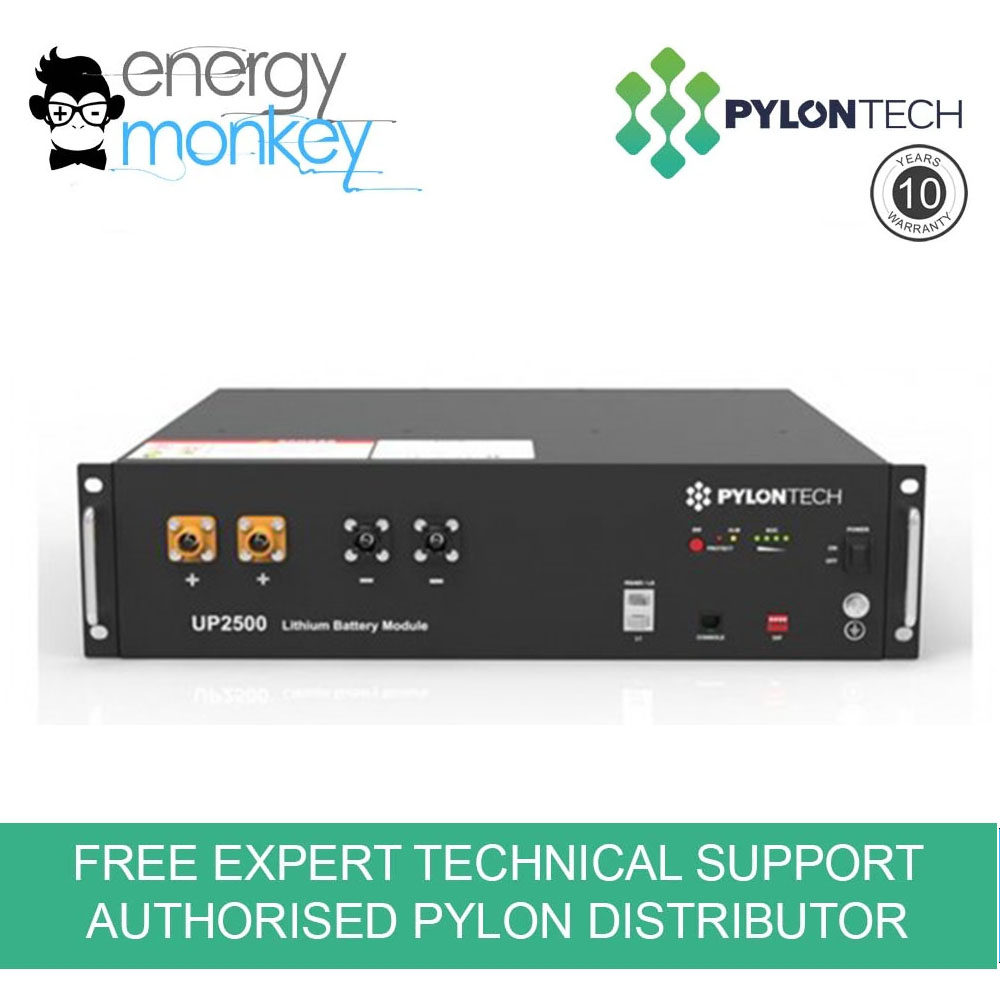

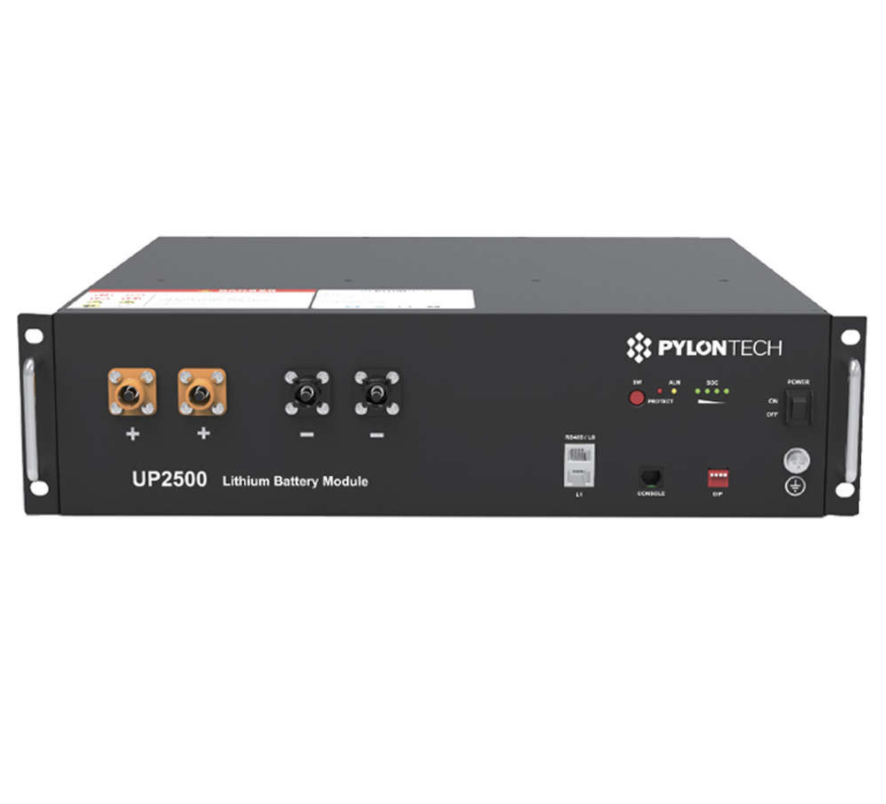

UP2500 PYLONTECH Lithium battery
Pylontech ‘s UP2500 lithium Batteries is the best backup system for Office computers, data centers, cargo equipment and other businesses, banks, hospitals, schools, train stations, airports, Telecommunications…
Features
- Cell Balance function
- Voltage protection
- Overload protection
- Overload protection
- Overcurrent Protection
- Short Circuit protection
- Temperature protection
- Self boot function
| Specification | |
| Basic parameters | Pylontench UP2500 |
| Nominal Voltage | 25.6 V |
| Nominal capacity | 2840Wh |
| Ability to use | 2550Wh |
| Dimensions | 442x420x119 |
| Weight | 27.5 |
| Voltage discharge | 23 ~ 28.8 |
| Load Voltage | 28.2 ~ 28.8 |
| Current OF Loading/unloading | 56 (continuous) 111 (Peak @ 15s) |
| Communication | RS485 |
| Temperature of Work | 0 ~ 50 |
| Temperature in The drawer | -20 ~ 60℃ |
| Moisture | 5% ~ 90% |
| Altitude | < 2000m |
| Durability | 10 years (25th-77 º F |
| Life Cycles | >6000, @ 25℃ |
| Authentication Level | IEC62619/RoHS/UN 38.3 |
