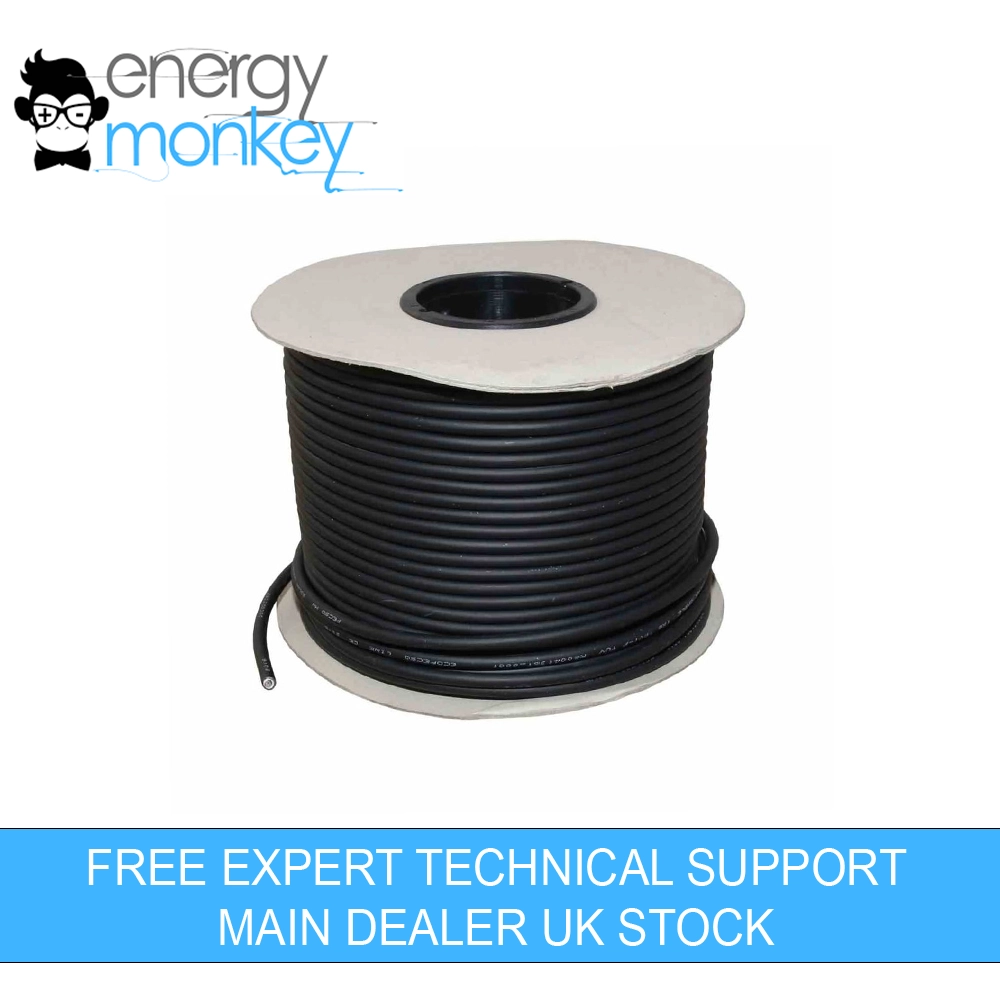

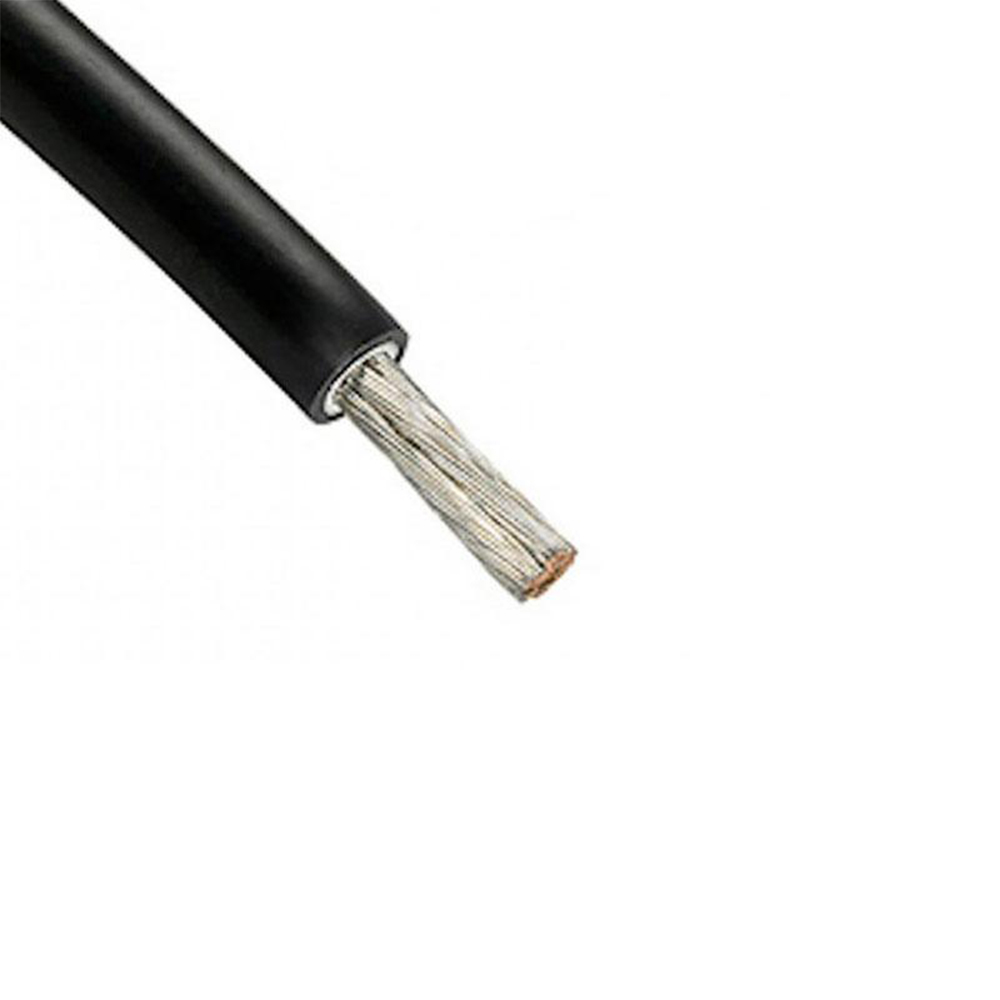

Solar PV Cable – 6mm² (10 metres continuous length)

Please note this will come in 10 metres of continuous length, if you select a quantity of 2 then it will come with 20 metres of continuous length etc.

This cable can be used for connecting solar panels to inverters or charge controllers as this type of cable is rated to high voltage especially needed for solar panels in series.

This type of solar PV cable is also well suited to small wind turbine installations where there will often be a low voltage but high current output making the power generated very susceptible to cable voltage drop even over very short distances of just 5 metres. Your system design should try and use the highest voltage output possible from your installation as this will help to reduce voltage drop.

Specification

Max current rating 55 Amps
Temperature range -40 C to +90 C (Max. overload temperature: 120 C and Max. short circuit temperature: 250 C)
1 Core: Black
