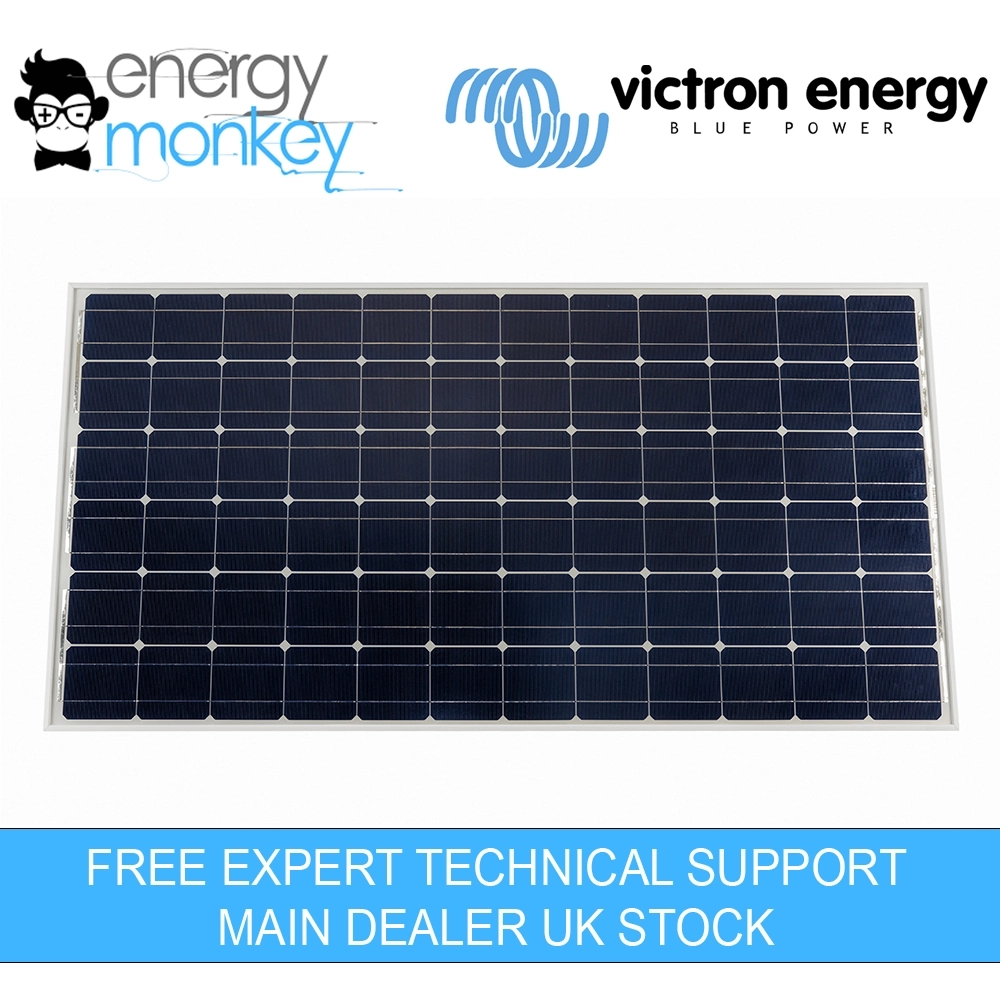

Victron Solar Panel 215W-24V Mono 1580 x 808 x 35mm series 4a (SPM042152400)

Name: Victron Solar Panel 215W-24V Mono 1580 x 808 x 35mm series 4a (SPM042152400)
SKU: SPM042152400
Price: 168.00 GBP
Availability: InStock

Original price was: £192.00.Current price is: £168.00. "Inc. VAT"

1 in stock

SKU: SPM042152400 Categories: Solar Panels, Solar Panels, Victron Energy

Victron Solar Panel 215W-24V Mono 1580 x 808 x 35mm series 4a. (SPM042152400)

– Low voltage-temperature coefficient enhances high-temperature operation.
– Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
– 25-Year limited warranty on power output and performance.
– 5-Year Limited warranty on materials and workmanship.
– Sealed, waterproof, multifunctional junction box gives high level of safety.
– High performance bypass diodes minimize the power drop caused by shade.
– Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
– A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
– Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
– Pre wired quick-connect system with PV-ST01 connectors.

Nominal Power (±3% tolerance)	215W
Cell type	Monocrystalline
Number of cells in series	72
Maximum system voltage	1000V
Temperature coefficient of MPP (%)	-0.45/°C
Temperature coefficient of Voc (%)	-0.35/°C
Temperature coefficient of Isc (%)	+0.04/°C
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	200 kg/m²
Allowable Hail Load	23 m/s, 7.53 g

Weight	16.5 kg
Dimensions	1580 × 808 × 35 mm
Country of origin	China
Global Identifier (GTIN code)	8719076040378
Intrastat statistical code	85414090
Manufacturer	Victron Energy
Quantity per masterbox	1
Quantity per pallet	42
USA statistical code	8541.40.60-20
Size	1580 x 808 x 35
SKU	SPM042152400
