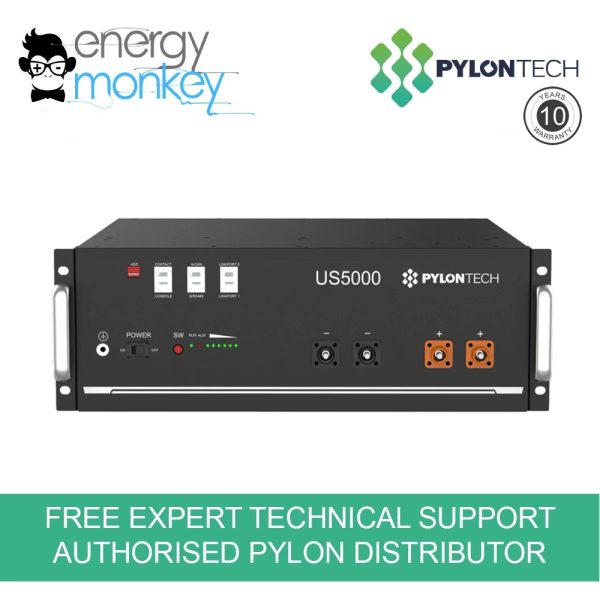

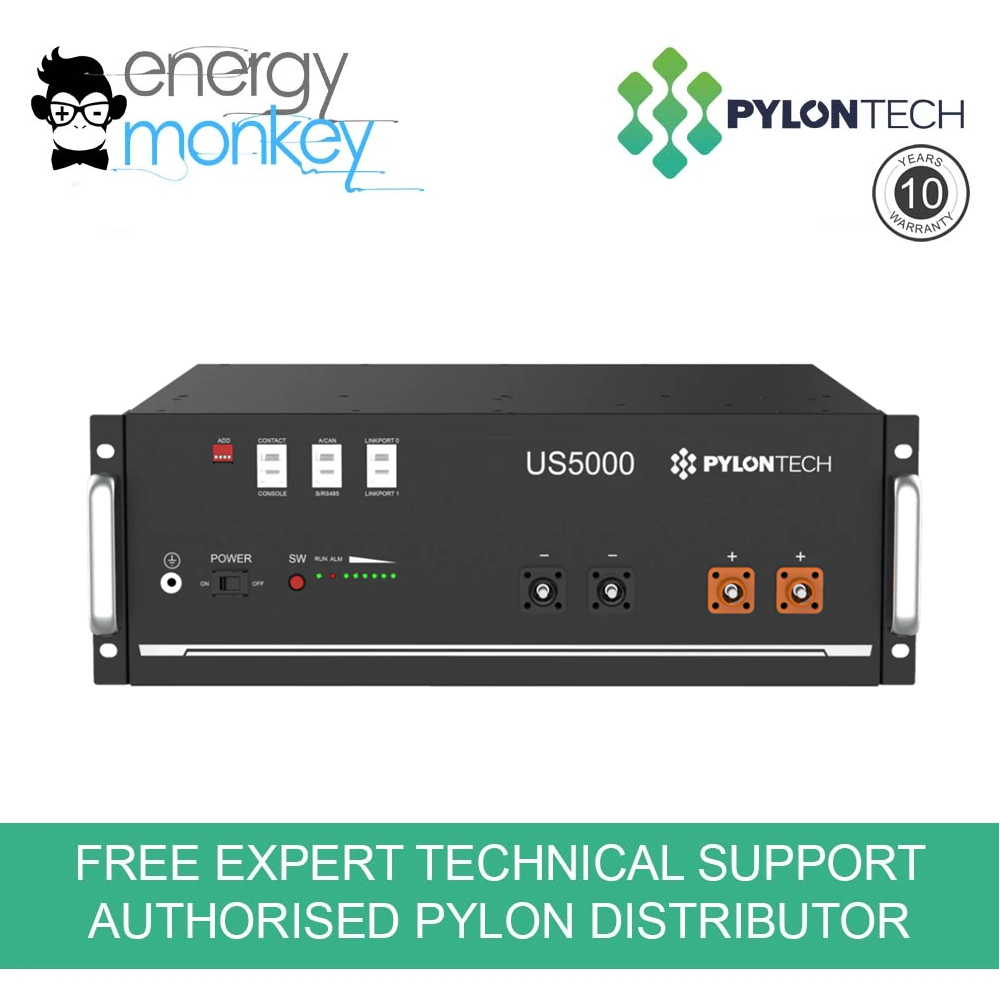

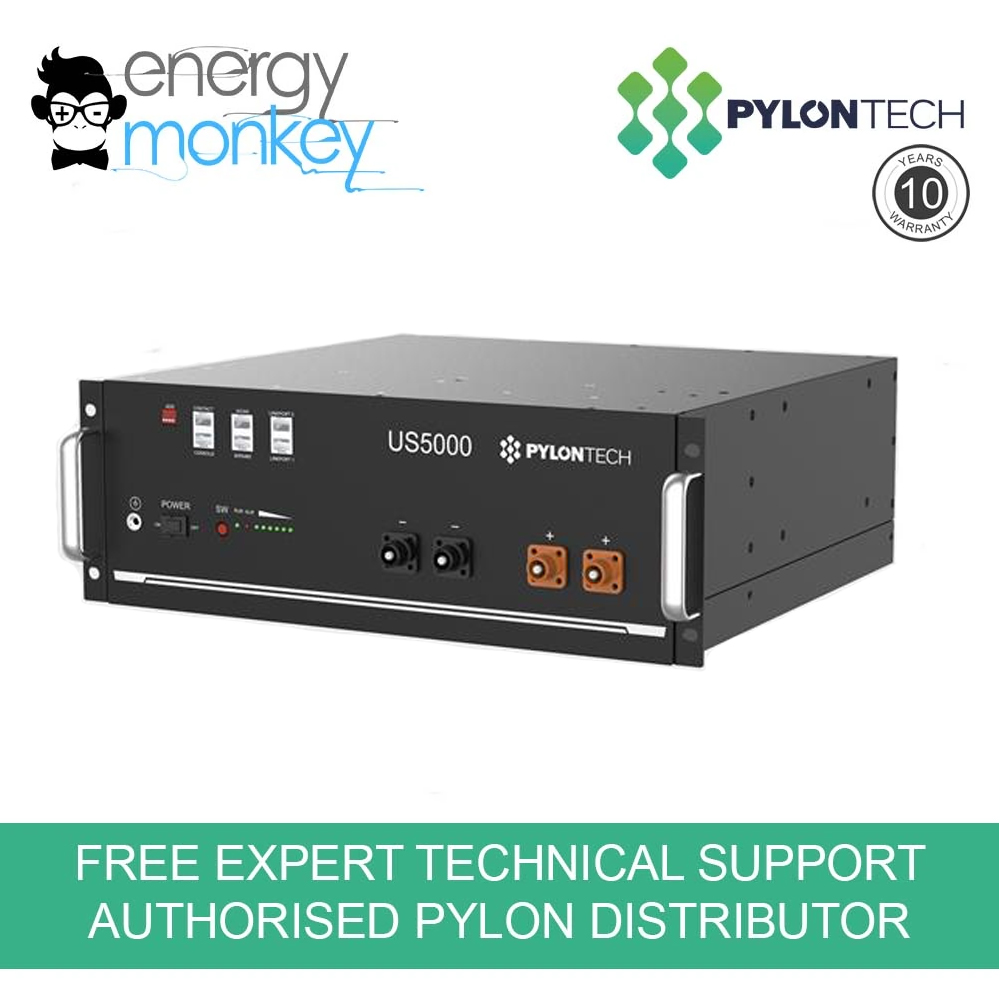

PylonTech US5000 4.8kWh 95% D.O.D Battery Storage Lithium Ion

A new battery in the US series from Pylontech. The US5000 is a 48V Lithium Ion battery with incredible features to provide a competitive edge in the market. US5000 is the latest Pylontech 48V battery with a much bigger capacity at 4.8kWh modular and has many stronger features like, High current strike endurance, Dual active protection, Remote upgrade feature and can be connected up to 16 modules per single string giving 76.8KWh and up to 384KWh when 5 strings connected via a Pylontech LV-Hub

Product Features

• Modular design for ease of expansion
• Higher usable capacity resulting in less battery modules installed
• Usable capacity 4 560Wh
• Parallel Capability of up to 16 units
• Allows for large installation of up to 72.96kWh with no LV Hub
• Intelligent BMS protecting battery cells
• 95% DoD with more usable capacity
• RS485 and CAN compatible
• Comes with a 5-year warranty extendable
• Long cycle life and superior performance
• Compatible with tier 1 inverter brands



To extend the warranty you have to register here: http://en.pylontech.com.cn/service/support

Supplier Part No: US5000

Weight: 38 kg

Battery Type: Lithium Ion

Nominal Energy: 4800 Wh

Depth of discharge: 95.00 %

Voltage: 48 V

Continuous Discharge Rate (Normal Use): 2400 W

Maximum Discharge Rate (5 Minutes): 4800 W

Surge Discharge Rate (15 Seconds): 5808 W

Maximum Charge Rate (5 Minutes): 4800 W

* In accordance with Pylontech’s warranty conditions. The warranty is only valid if the batteries have been installed and configured correctly by an electrician or authorised installer.

Energy Monkey are one of the UK’s leading suppliers, Installers and fully experienced in repairs – we only offer technical support to customers that have purchased Pylontech batteries direct from us.
