The Ultimate Guide to the Victron Orion XS 12/12-50A:
The Gold Standard for DC-DC Split Charging

Name: Joe Gardner
Item: Energy Monkey Ltd
Rating: 5
Author: admin

High-efficiency battery-to-battery charging — engineered for smart alternators, lithium compatibility, and professional campervan builds.

In the rapidly evolving world of vehicle power management, the transition from traditional split charge relays to advanced Battery-to-Battery (B2B) chargers has become a necessity rather than a luxury. If you are building a modern campervan, a rugged 4×4 expedition vehicle, or upgrading the electrical system on a marine vessel, the Complete Split Charge DC-DC Kit featuring the Victron Orion XS 12/12-50A is the pinnacle of charging technology.

At Energy Monkey Ltd, we understand that navigating the complexities of Euro 6 engines, smart alternators, and regenerative braking systems can be daunting. That is why we have engineered a comprehensive, pre-crimped, and “plug-and-play” solution designed to maximize the lifespan of your leisure battery while ensuring your vehicle’s starter battery remains protected.

Why Modern Vehicles Require a DC-DC Charger

If your vehicle was manufactured after 2015, chances are it is equipped with a Smart Alternator. Unlike older constant-voltage alternators, smart alternators fluctuate their voltage output to reduce emissions and improve fuel efficiency. While this is great for the environment, it is catastrophic for a secondary battery.

When your vehicle utilizes regenerative braking, the alternator voltage can spike or drop significantly. A traditional “voltage sensitive relay” (VSR) cannot handle these fluctuations, often failing to charge the auxiliary battery entirely or, worse, causing over-heating and damage to Lithium (LiFePO4) or AGM batteries.

The Orion XS 12/12-50A Advantage

The Victron Orion XS (MPN: ORI121217040) is specifically engineered to overcome these hurdles. By acting as a sophisticated buffer between your engine and your living quarters, it converts the erratic output of a smart alternator into a stable, multi-stage charging profile. Whether you are idling in traffic or cruising the motorway, your auxiliary battery bank receives a steady, high-speed 50A charge.

Technical Deep Dive: What Makes the Orion XS 12/12-50A Unique?

Victron Energy has redefined the DC-DC market with the Orion XS. It isn’t just a slight upgrade; it’s a re-imagining of what a power converter should be.

1. Unmatched Efficiency and Thermal Management

Traditional DC-DC chargers are notorious for generating heat, often requiring bulky fans that can fail or become noisy. The Orion XS features a revolutionary design that achieves up to 98.5% efficiency. This means less energy is wasted as heat, allowing the unit to maintain its full 50A output even in the confined, warm spaces typical of van conversions and engine bays.

2. Fully Configurable via VictronConnect

Gone are the days of fiddling with tiny dip-switches. The built-in Bluetooth Smart functionality allows you to connect via the VictronConnect App. From your smartphone, you can:

Set custom charging voltages for Lead-acid, Gel, AGM, or Lithium batteries.
Monitor real-time input and output voltage and current.
Update firmware wirelessly to ensure you always have the latest features.
Configure Engine Shutdown Detection to ensure the charger only pulls power when the engine is actually running, preventing a flat starter battery.

3. Adaptive 3-Stage Charging

To ensure maximum battery health, the Orion XS utilizes a professional 3-stage charging algorithm:

Bulk: High-current charging to bring the battery up to approximately 80% capacity quickly.
Absorption: Controlled voltage to top off the remaining 20% safely.
Float: A maintenance mode that keeps the battery at 100% without overcharging or “boiling” the electrolyte.

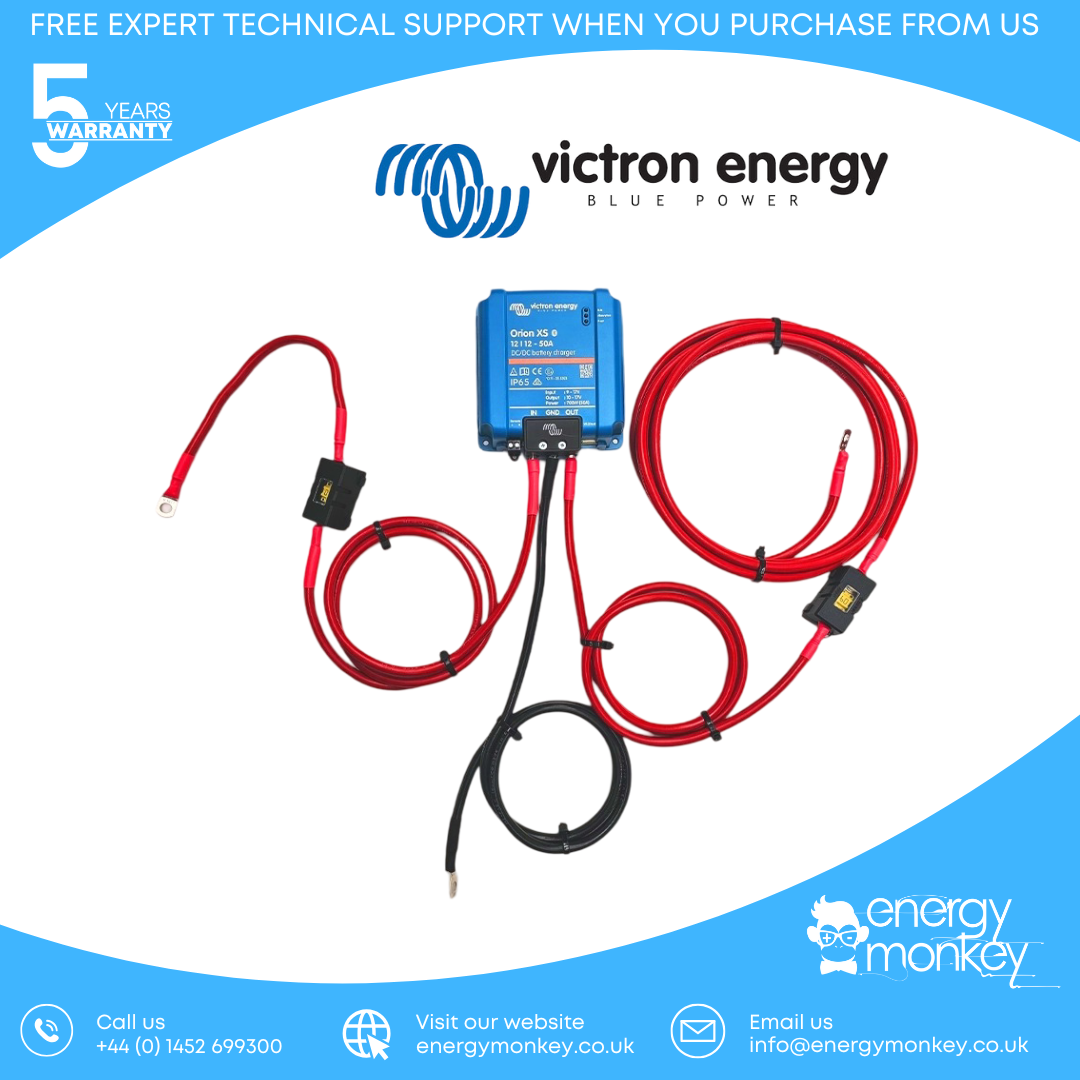

What’s Inside the Energy Monkey Complete Installation Kit?

We don’t just provide the charger; we provide a complete, professional-grade installation ecosystem. Every component in our kit has been selected for its durability and high-current handling capabilities. We use Hi-Flex Single PVC 170amp 25mm² cable — far exceeding the standard requirements — to ensure zero voltage drop and maximum safety.

Component Breakdown:

1x Victron Orion XS 12/12-50A: The “brain” of your charging system.
Red Hi-Flex Cable (Custom Length): High-quality 25mm² copper cable to run from your Starter Battery to the Orion XS.
Red Hi-Flex Cable (2.5m): Dedicated connection from the Orion XS to your Leisure Battery.
Black Hi-Flex Ground Cable: Essential for a common ground/negative return to ensure system stability.
2x Victron MIDI-Fuse Holders: Robust, heat-resistant holders to protect your wiring.
1x 80A Victron MIDI-Fuse: Specifically rated to handle the 50A throughput with a safe margin for surge.
Heavy-Duty Battery Terminals: For a rock-solid connection to your battery posts.
Pre-Crimped 16mm² & 25mm² Copper Tube Terminals: We use professional hydraulic crimping tools to ensure these 8mm hole terminals never vibrate loose — a common cause of electrical fires in DIY builds.

Applications: Where Can You Use the Orion XS Kit?

🚐 Professional Campervan Conversions

VW Transporter (T6/T6.1), Ford Transit Custom, Mercedes Sprinter — slim and cool enough to mount under a seat.

⛰️ 4×4 Off-Road & Overlanding

Built to withstand vibration, dust and harsh terrain — keeps fridge, GPS, and gear running reliably.

⛵ Marine and Sailing Vessels

Corrosion-resistant components, perfect for charging house banks or bow thruster batteries from inboard alternators.

Step-by-Step: The Installation Process

One of the primary reasons customers choose the Energy Monkey Kit is the simplicity of the “pre-crimped” approach. You don’t need to invest in expensive hydraulic crimpers or worry about loose connections.

Mounting: Secure the Orion XS to a flat surface in a well-ventilated area, preferably close to the leisure battery to minimize voltage drop.
Input Connection: Route the long red 25mm² cable from your starter battery (via a fuse) to the “Input” terminal of the Orion.
Output Connection: Connect the 2.5m red cable from the “Output” terminal to your leisure battery (also via a fuse).
Grounding: Connect the black cable to a chassis ground point or the negative terminal of the battery bank.
Configuration: Open the VictronConnect App, pair with the device, and select your battery type. The Engine Running Detection will automatically calibrate to your alternator’s behavior.

🛡️ Safety First: Protecting Your Investment

Over-temperature protection: unit derates instead of shutdown.
Short-circuit and reverse polarity protection.
Smart alternator compatibility — no ECU conflicts or dashboard warnings.

🐒 Why Buy from Energy Monkey?

Authorized Victron distributor — genuine 5-year limited warranty.
Technical experts for off-grid & mobile power.
Bespoke advice: C-rate matching, battery compatibility.
UK-based after-sales support.

Frequently Asked Questions (FAQ)

Can I use this with a Lithium (LiFePO4) battery?
Absolutely. The Orion XS has a dedicated Lithium charging profile that ensures the battery is charged safely and prevents the “alternator burn-out” issue associated with high-current lithium draws.

What is the difference between the old Orion-Tr and the new Orion XS?
The Orion XS is significantly more efficient, smaller, and runs much cooler. It also offers a higher current output (50A vs 30A) and features improved engine-running detection logic.

Do I need a D+ ignition feed?
Usually, no. The Orion XS features sophisticated engine-running detection based on voltage patterns and vibration, meaning you don’t have to hunt through your vehicle’s dashboard for a trigger wire.

Take Control of Your Power Today

Don’t let a sub-par charging system ruin your adventure. Invest in the Complete Split Charge DC-DC Kit and experience the peace of mind that comes with Victron Energy reliability. Whether you’re chasing the sun in a camper or navigating coastal waters, Energy Monkey ensures you have the power to stay there longer.
